NOZDAK Glass Door Handles series can be installed on glass doors, wooden doors, and doors with frames. Handles accessories are made with stainless steel, holes drilled in glass are recommended to be the 12- 15mm diameter.

Please install handle hen for decoration work.

Clean the handle at least once a week, and remove dirt with the soft brush to prevent scratches.

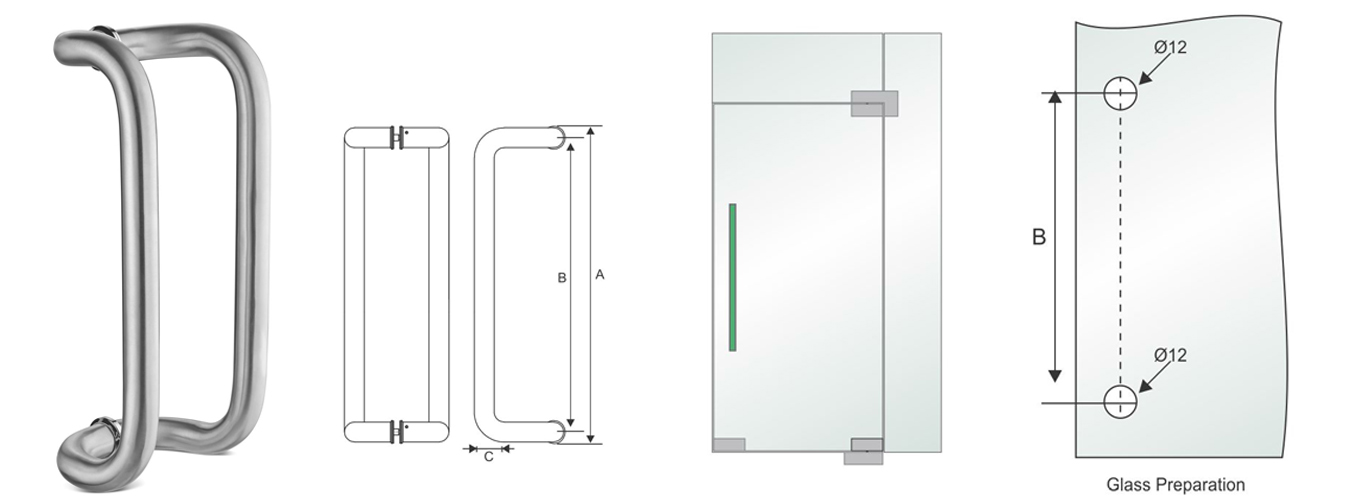

NGH-101

Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 22
350 250 22
400 300 22

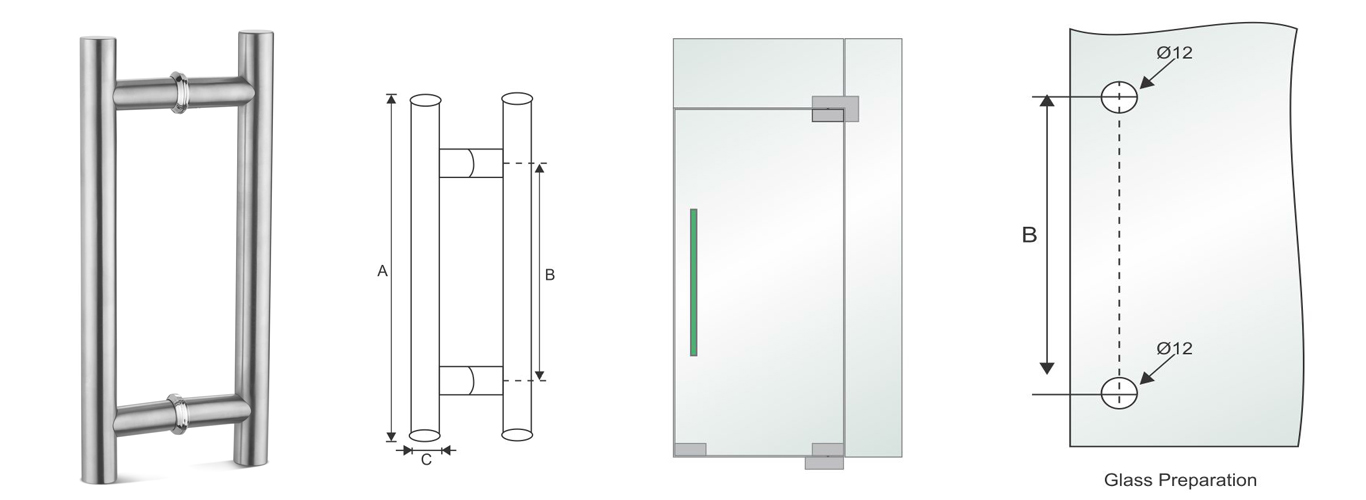

NGH-102

H-Type Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 22
350 250 22
400 300 22
500 350 22
550 400 22
600 450 22
400 300 25
500 350 25
550 400 25
600 450 25
650 500 25
700 550 25
750 600 25

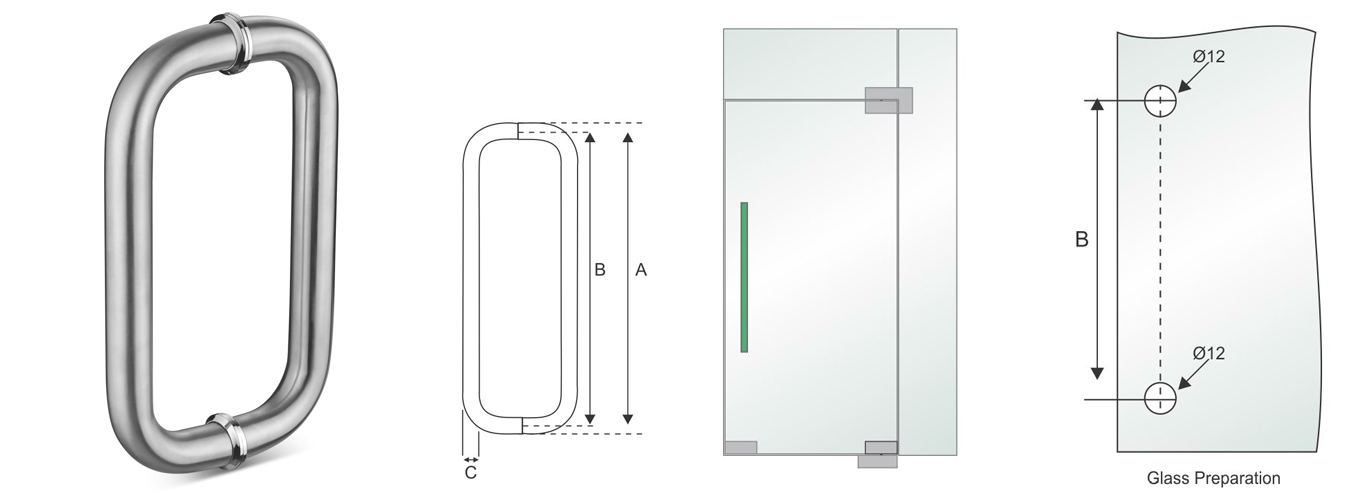

NGH-103

D-Type Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 22
350 250 22
400 300 22
500 350 22
550 400 22
600 450 22
400 300 25
500 350 25
550 400 25
600 450 25
650 500 25
700 550 25
750 600 25

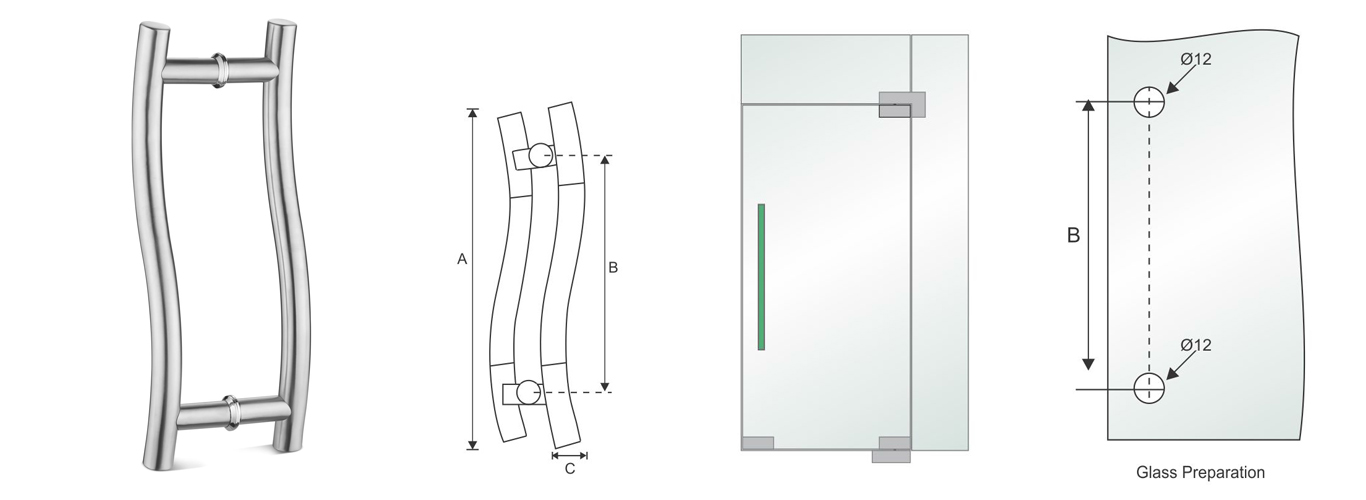

NGH-104

S-Type Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 22
350 250 22
400 300 22

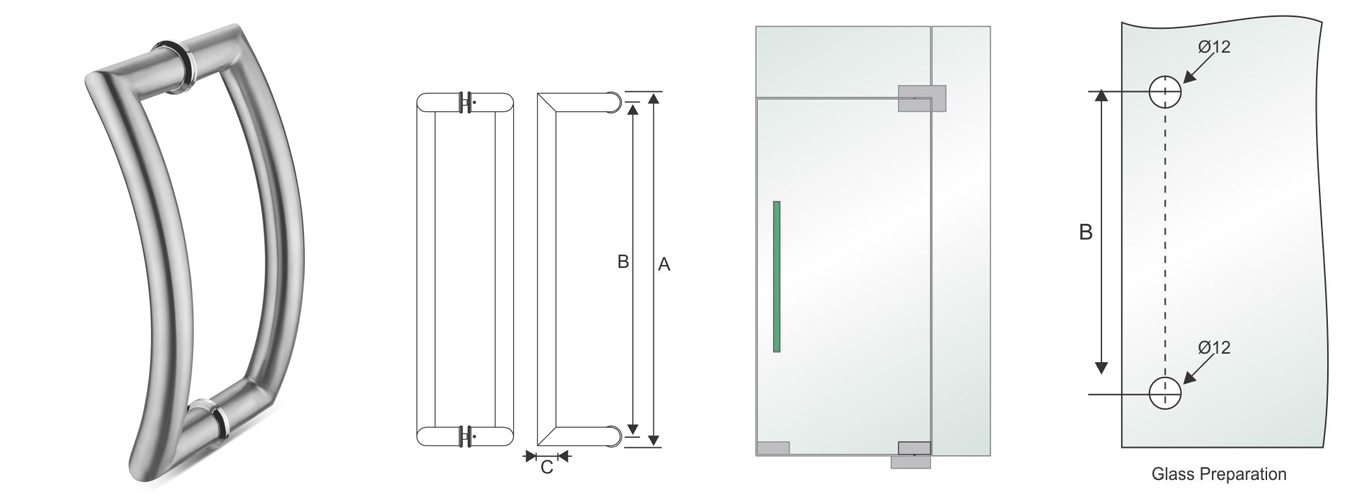

NGH-105

G-Type Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 22
350 250 22
400 300 22

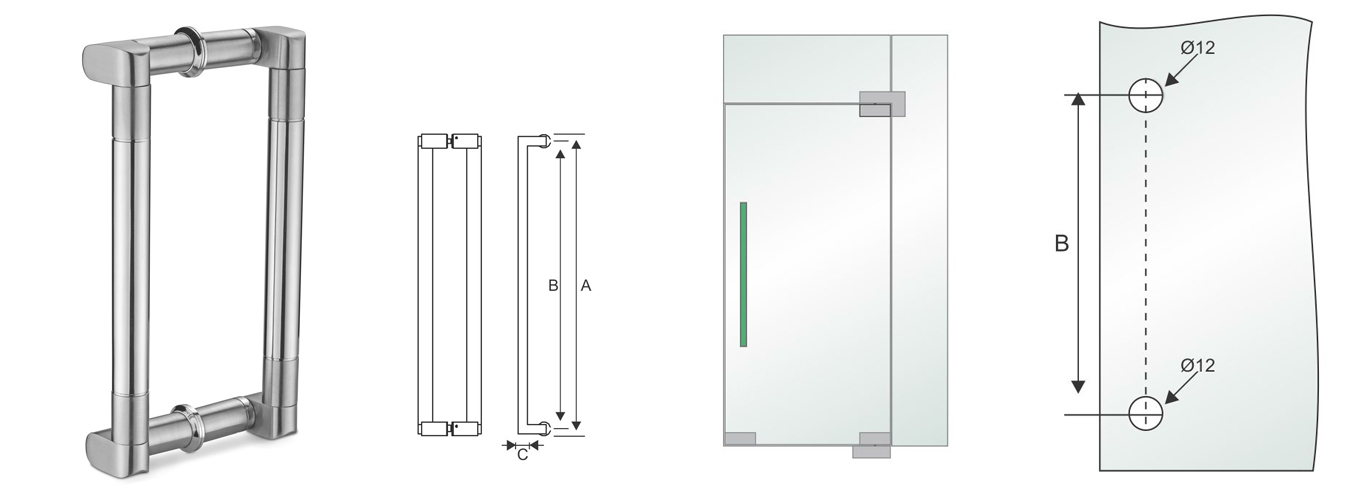

NGH-106

Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 19
350 250 19
400 300 19

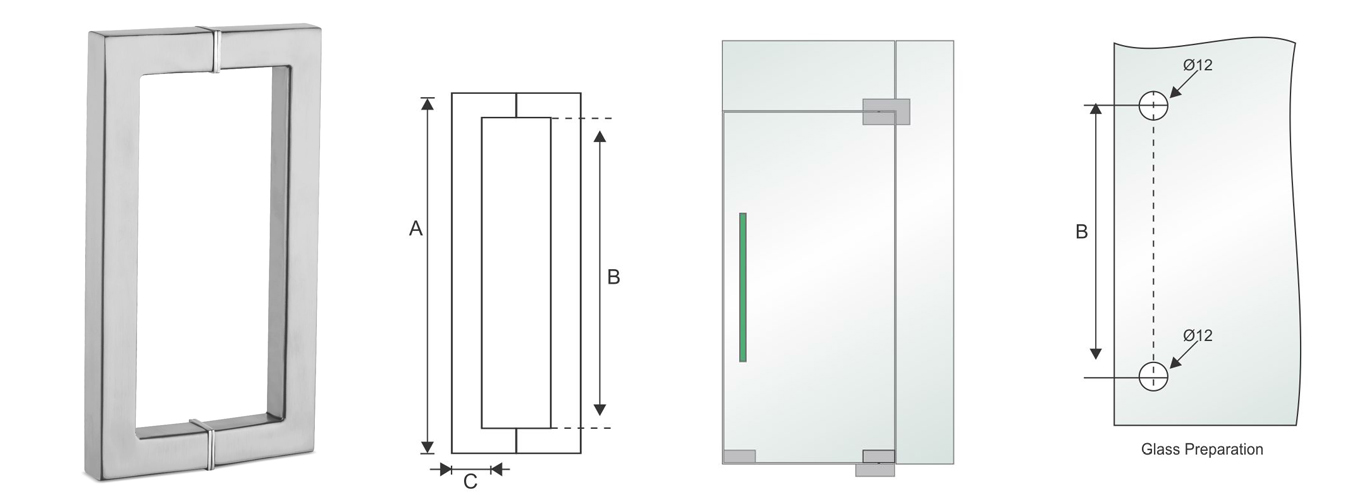

NGH-107

Glass Door Handle Square

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
400 300 25
500 350 25
550 400 25
600 450 25
650 500 25
700 550 25
750 600 25

NGH-108

Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 22
350 250 22
400 300 22

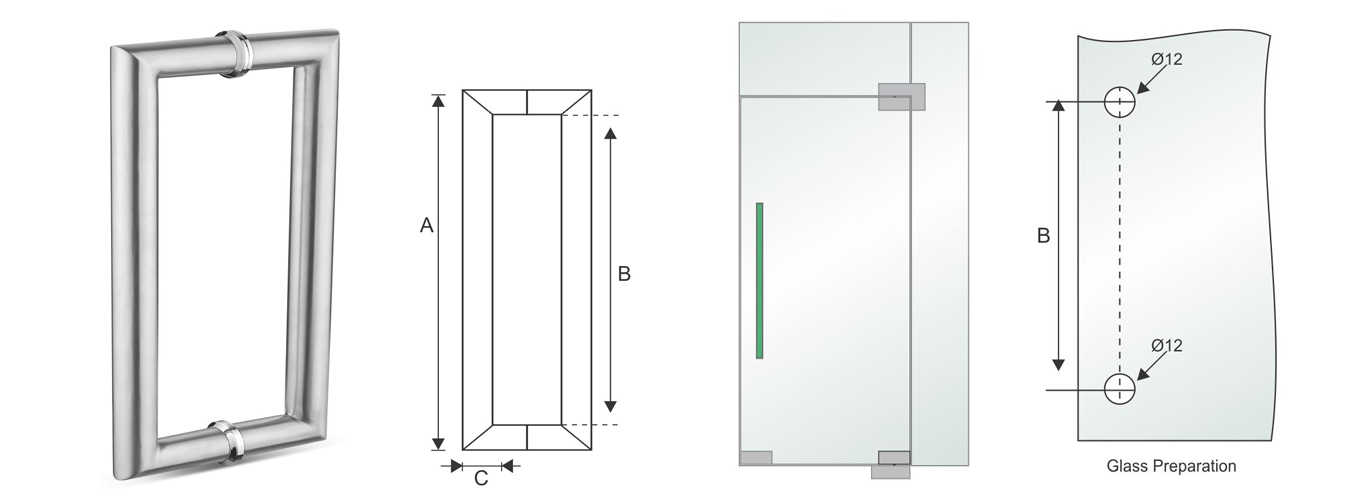

NGH-109

Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 25
350 250 25
400 300 25
500 350 25
550 400 25
600 450 25
650 500 25
700 550 25
750 600 25

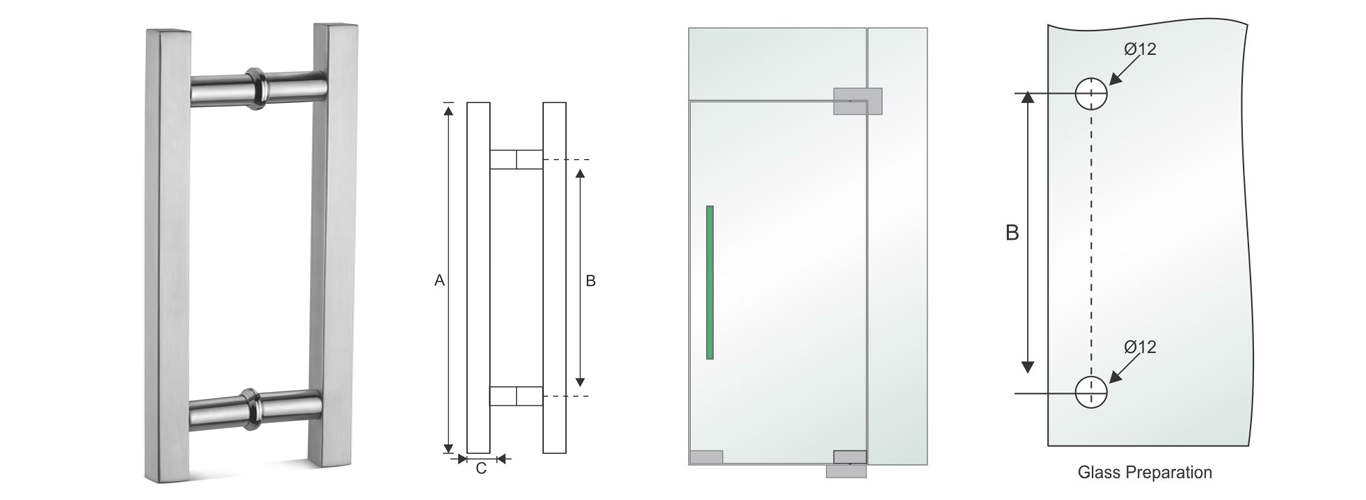

NGH-111

Glass Door Handle Square

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
400 300 25
500 350 25
550 400 25
600 450 25
650 500 25
700 550 25
750 600 25

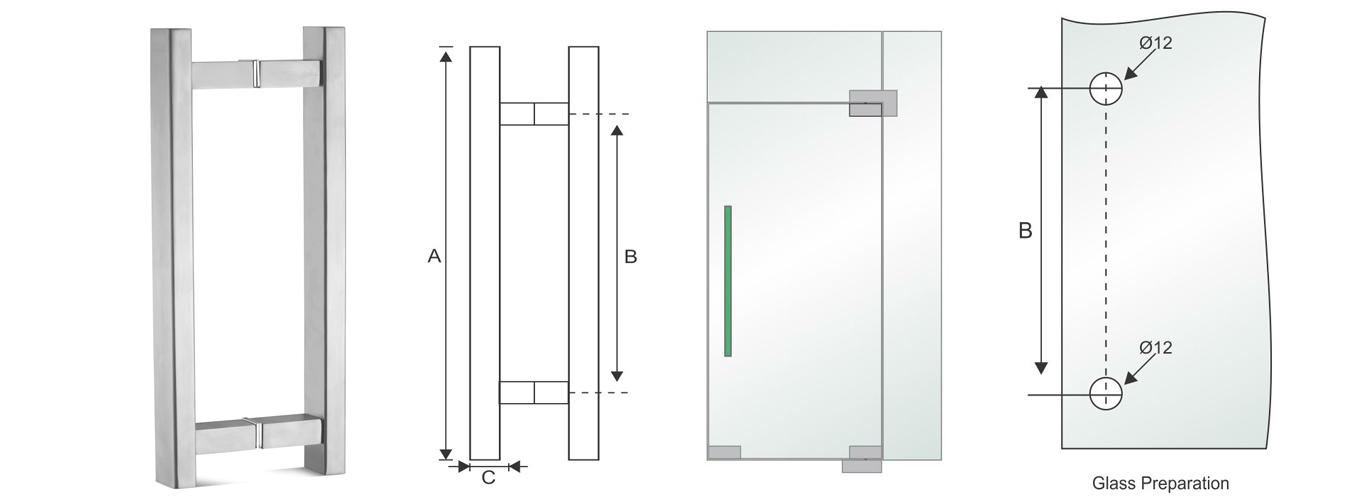

NGH-112

Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
400 300 15/30
500 350 15/30
550 400 15/30
600 450 15/30
650 500 15/30
700 550 15/30
750 600 15/30

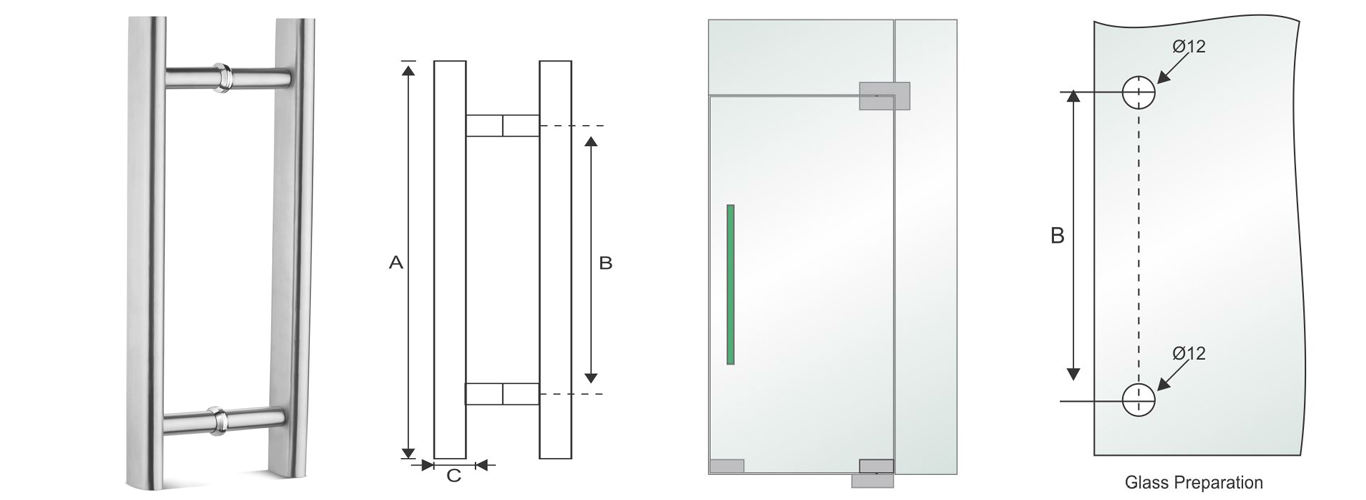

NGH-113

Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
400 300 25
500 350 25
550 400 25
600 450 25
650 500 25
700 550 25
750 600 25

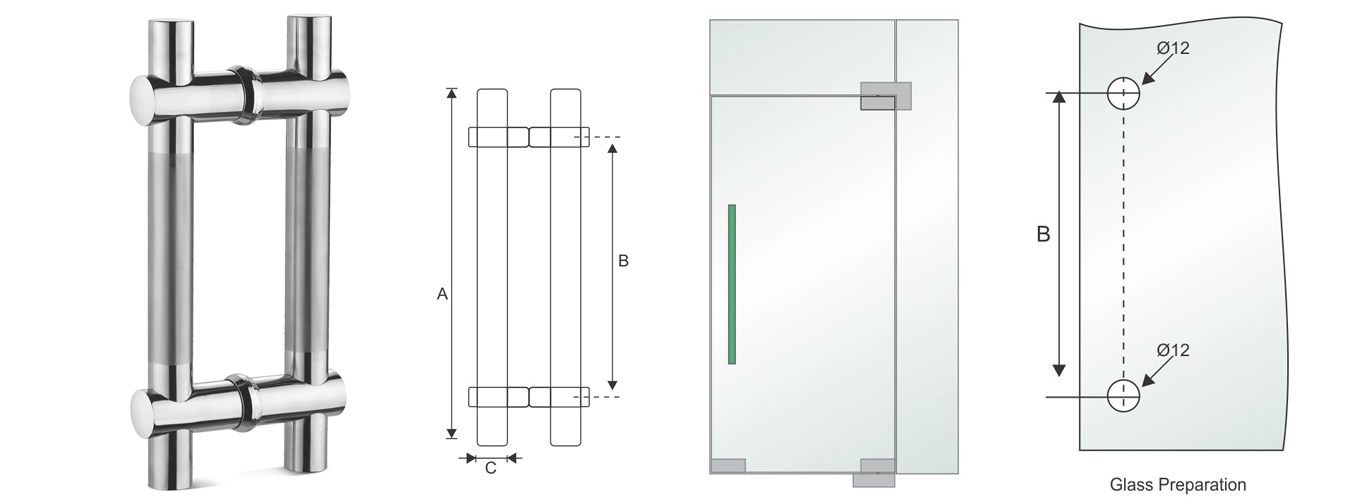

NGH-114

H-Type Glass Door Handle Adjustable

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
300 200 25
450 300 25
600 450 25

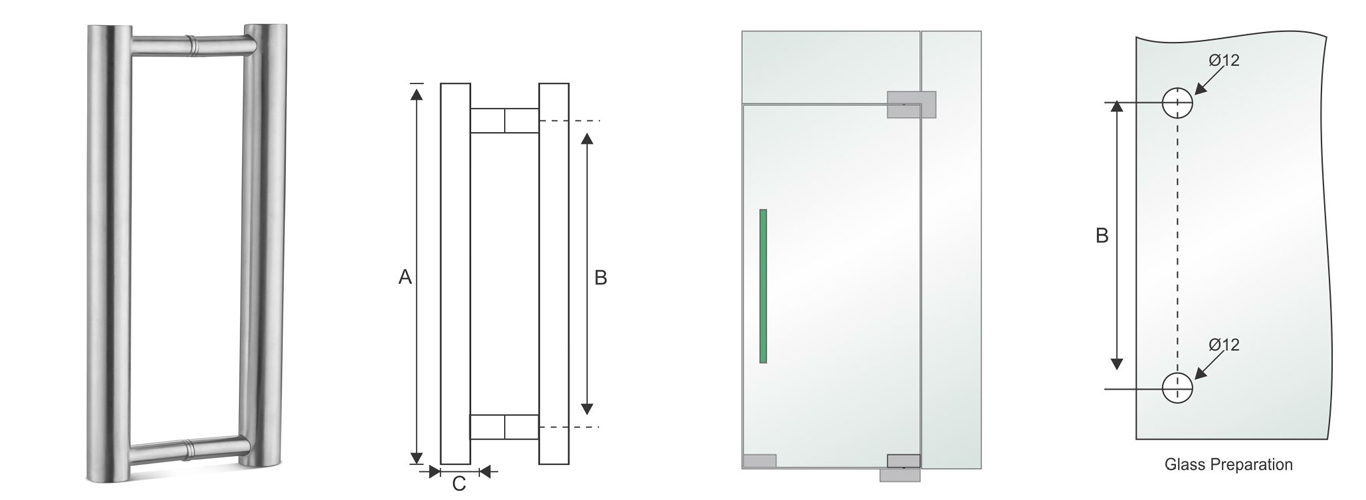

NGH-115

Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
500 350 10/25
550 400 10/25
600 450 10/25
650 500 10/25
700 550 10/25
750 600 10/25

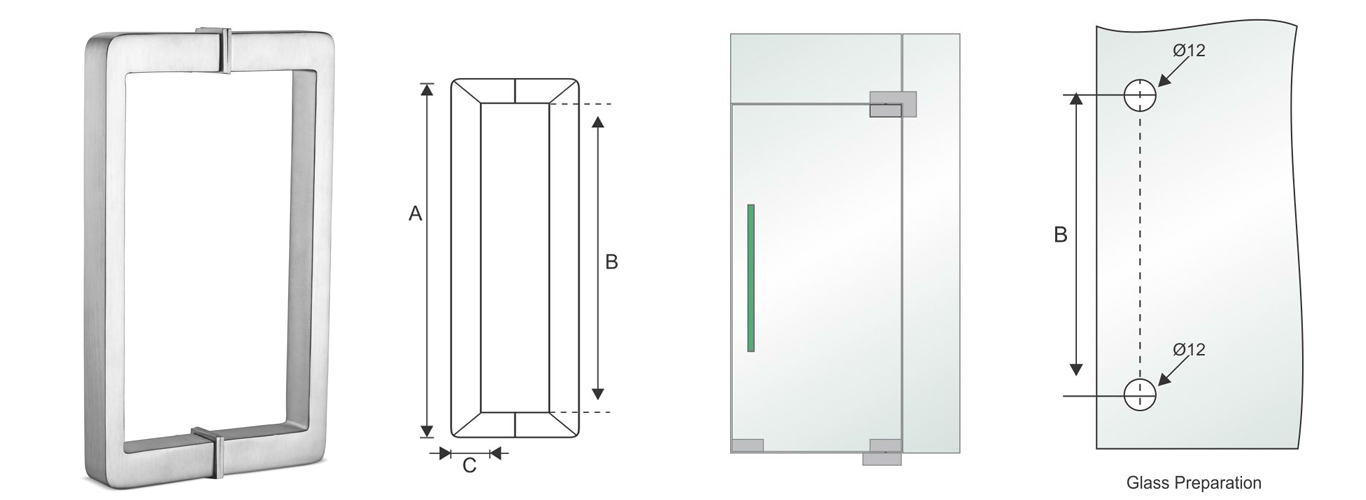

NGH-116

Glass Door Handle

Available Finish

  • Satin Stainless Steel
  • Combi

Material

  • Stainless Steel 304

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B) Dia (C)
400 300 10/25

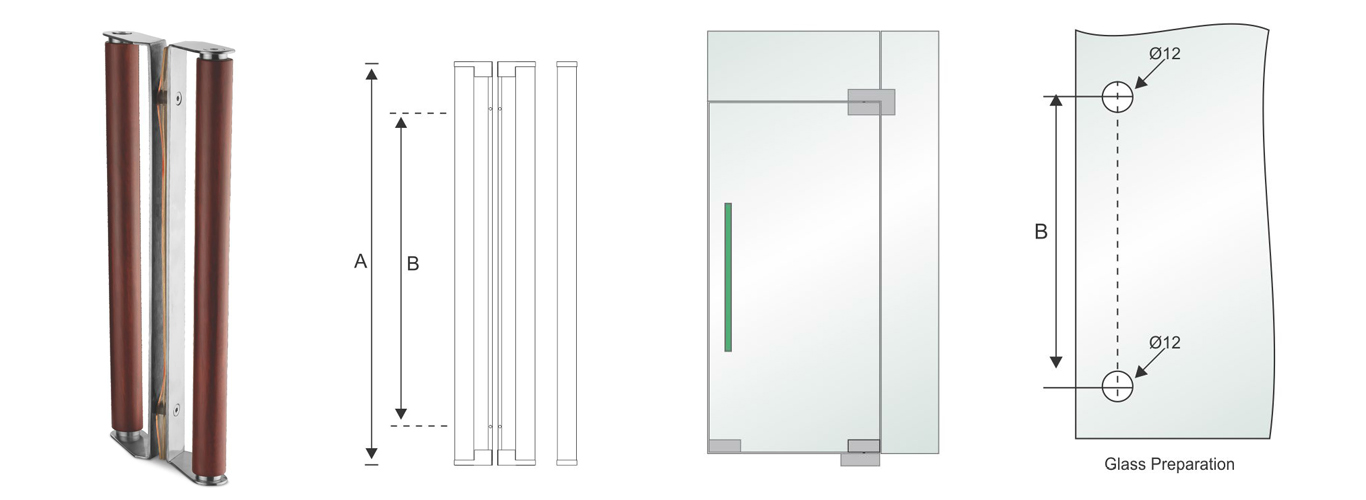

NGH-117

Glass Door Handle with Wood

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304
  • Wooden

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B)
400 300

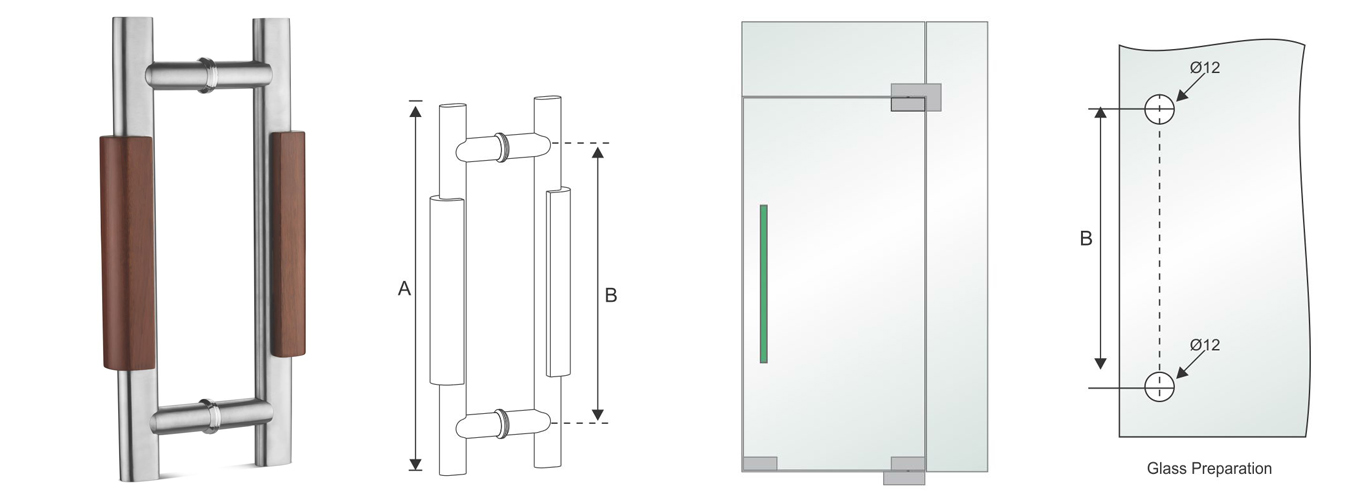

NGH-118

H-Type Glass Door Handle with Wood

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304
  • Wooden

All Sizes in (MM)

  • For back to back installation
  • With gasket to prevent glass from damage
Length (A) C to C (B)
400 300
