NOZDAK Shower Hinges, are a self-closing function at 302. Suitable for 8- 10mm thick glass. High strength alloy die-cast body secure holding the glass.

NOZDAK Glass Connectors, The frameless glass connectors are manufactured with high-grade alloy material as per the prevailing International standard. These are available in an extensive range of configurations. Handles, plastic profiles and other accessories matched to suits your desired combination.

Shower Hinges

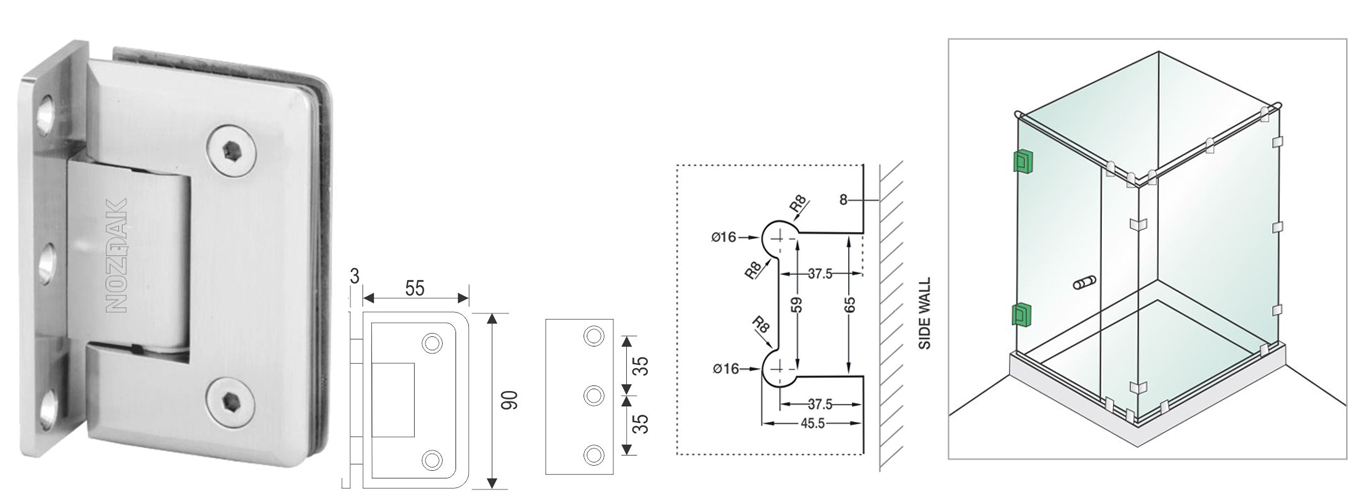

NSH-1

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Forged Brass

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

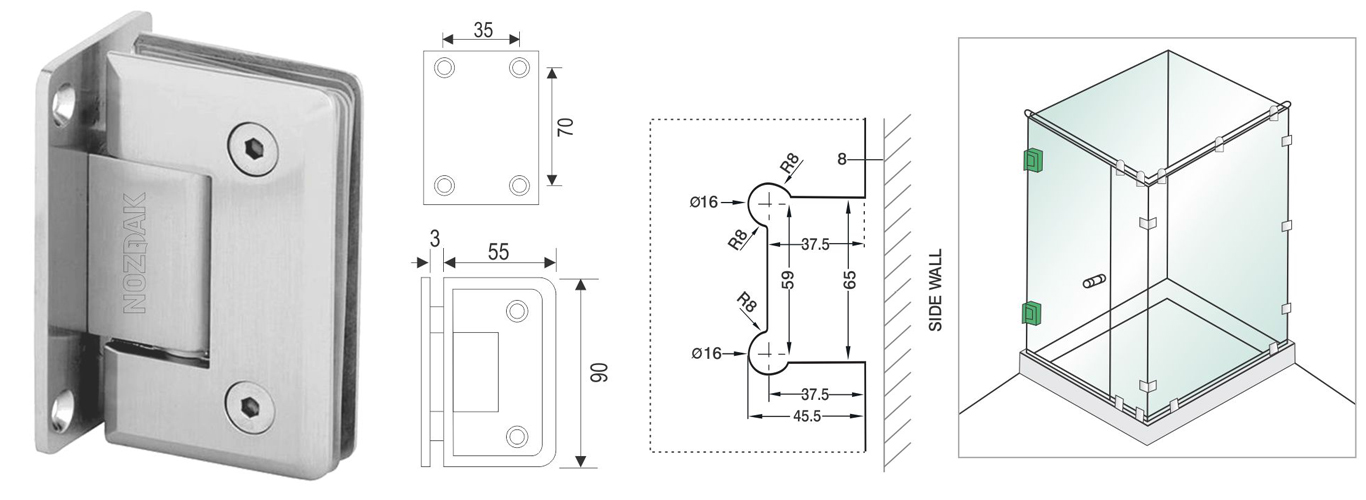

NSH-2

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Forged Brass

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

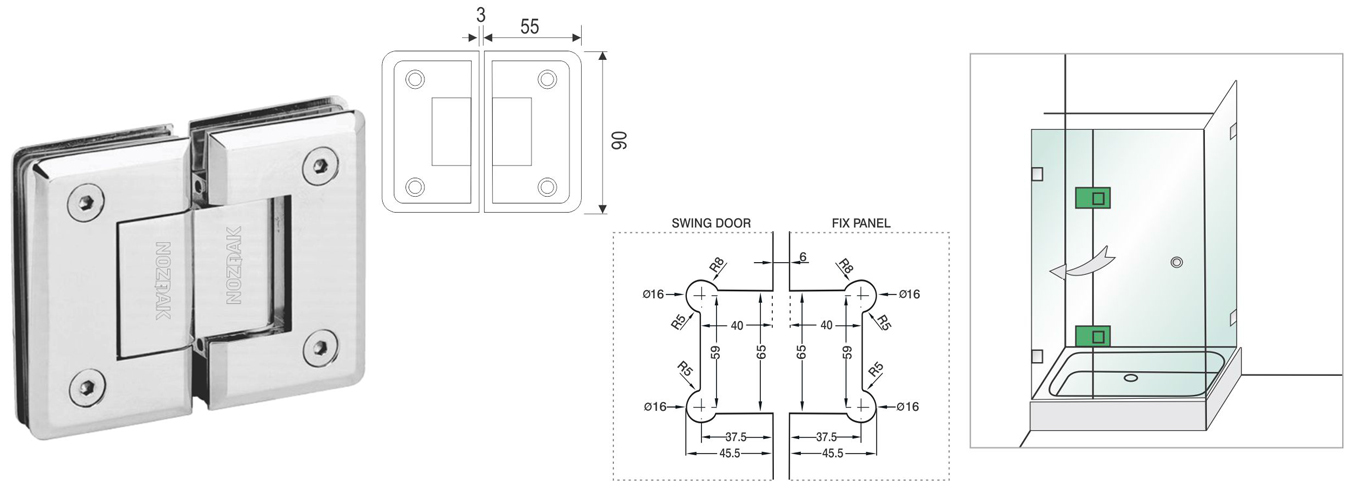

NSH-3

Wall to Glass 180° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Forged Brass

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

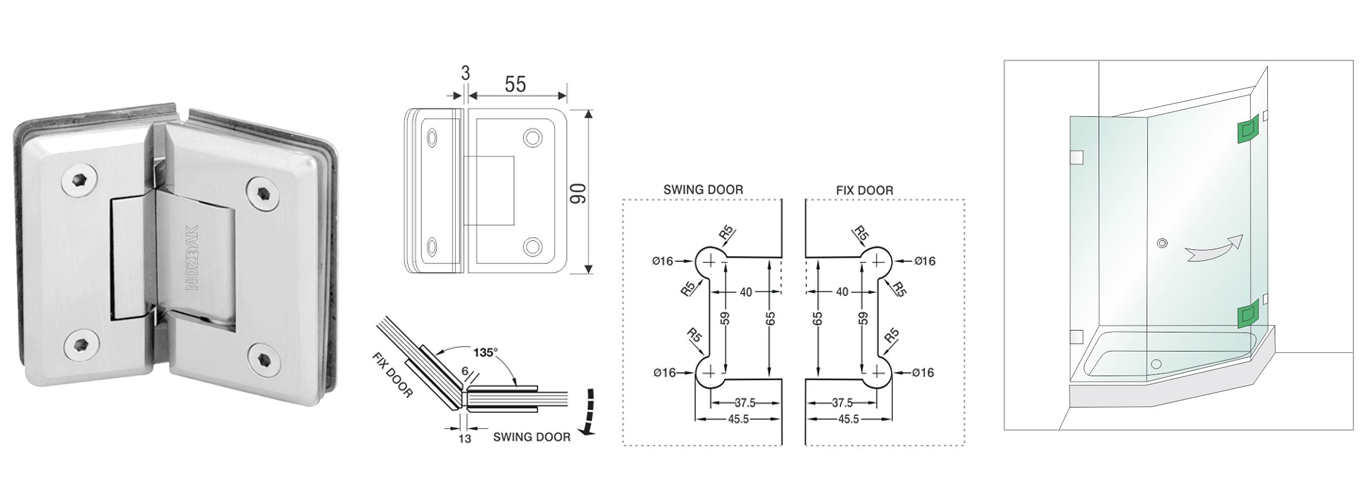

NSH-4

Wall to Glass 135° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Forged Brass

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

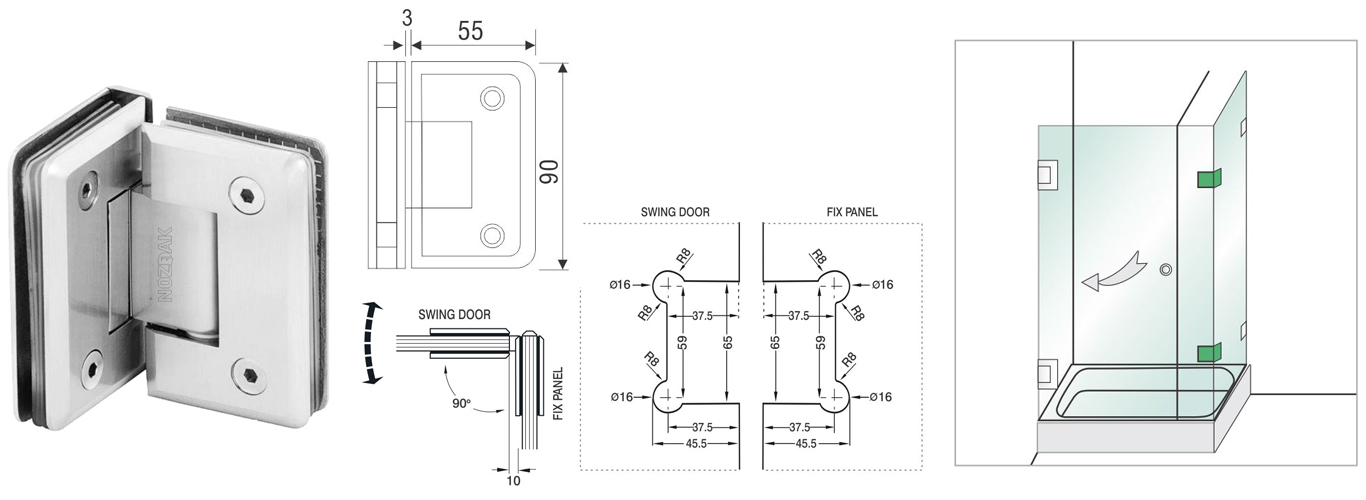

NSH-5

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Forged Brass

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

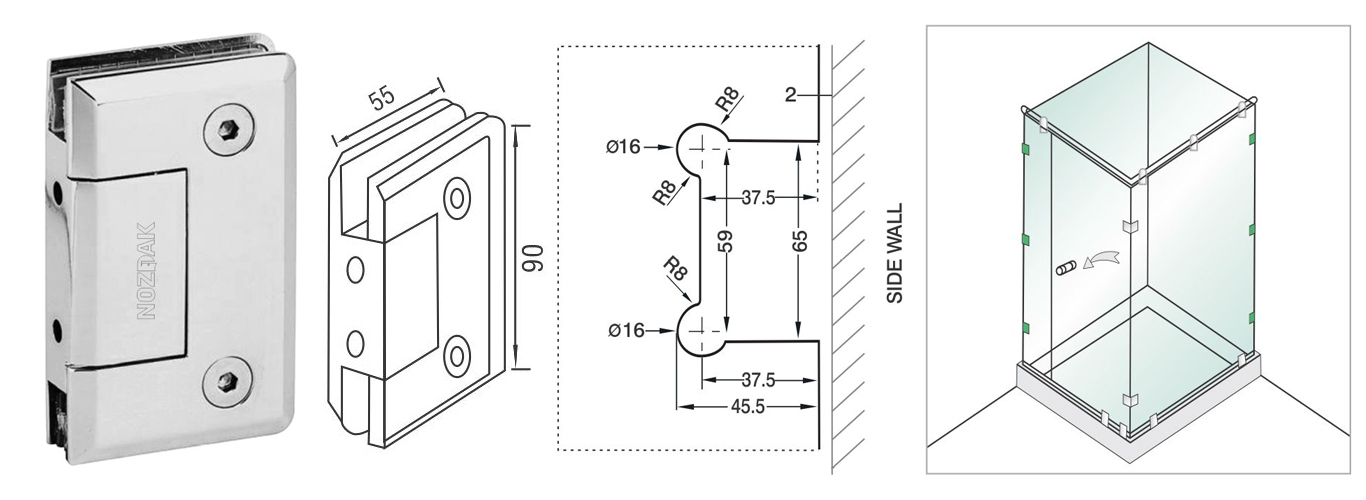

NSH-6

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Matt
  • Chrome Plated

Material

  • Forged Brass

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

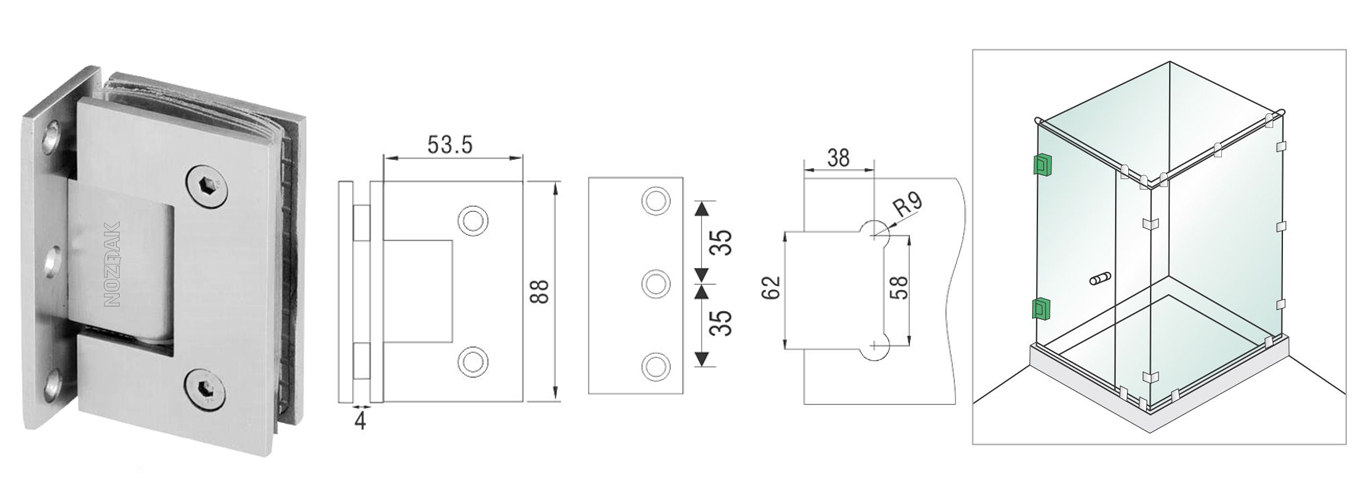

NSH-11

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

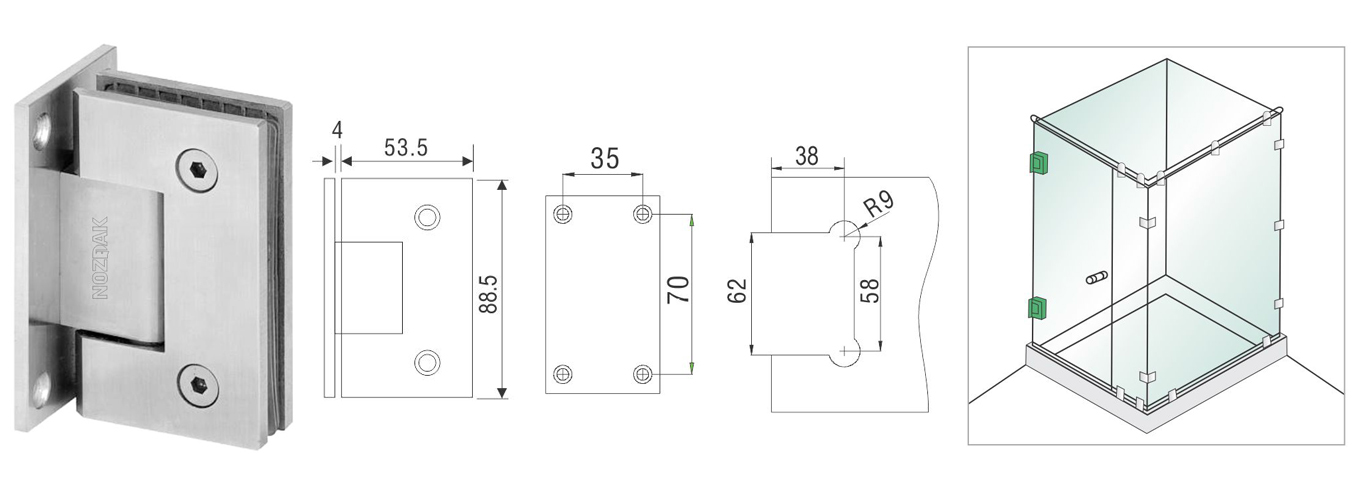

NSH-22

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

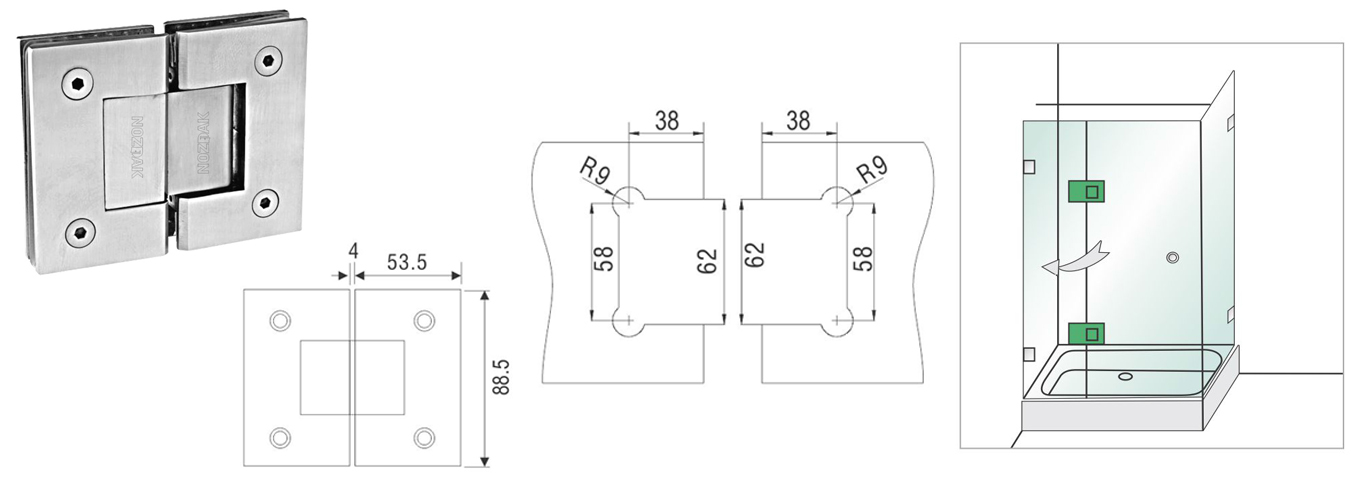

NSH-33

Wall to Glass 180° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

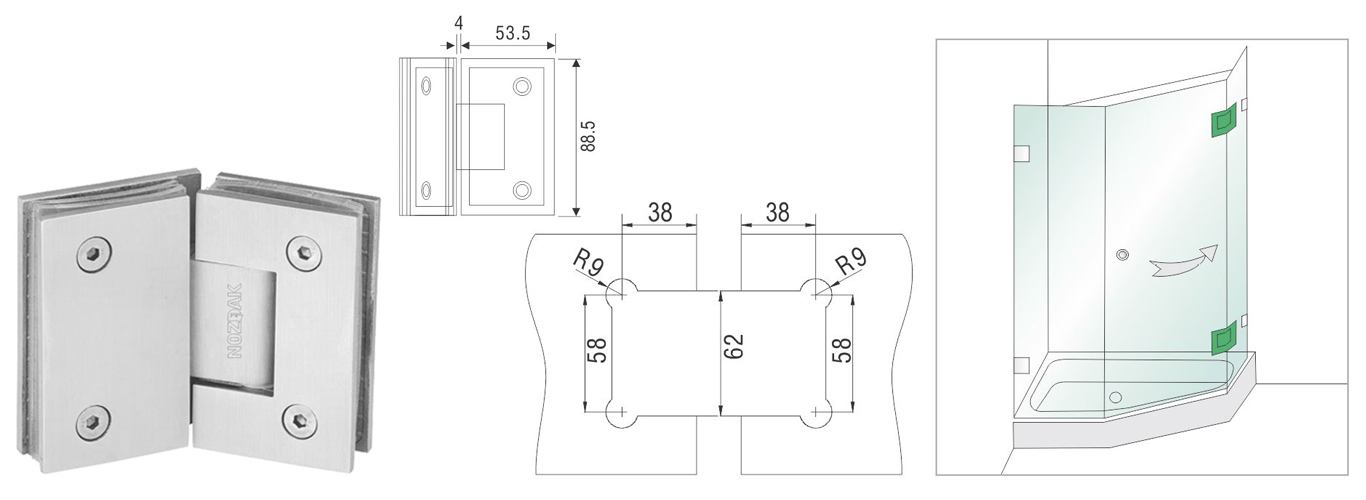

NSH-44

Wall to Glass 135° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

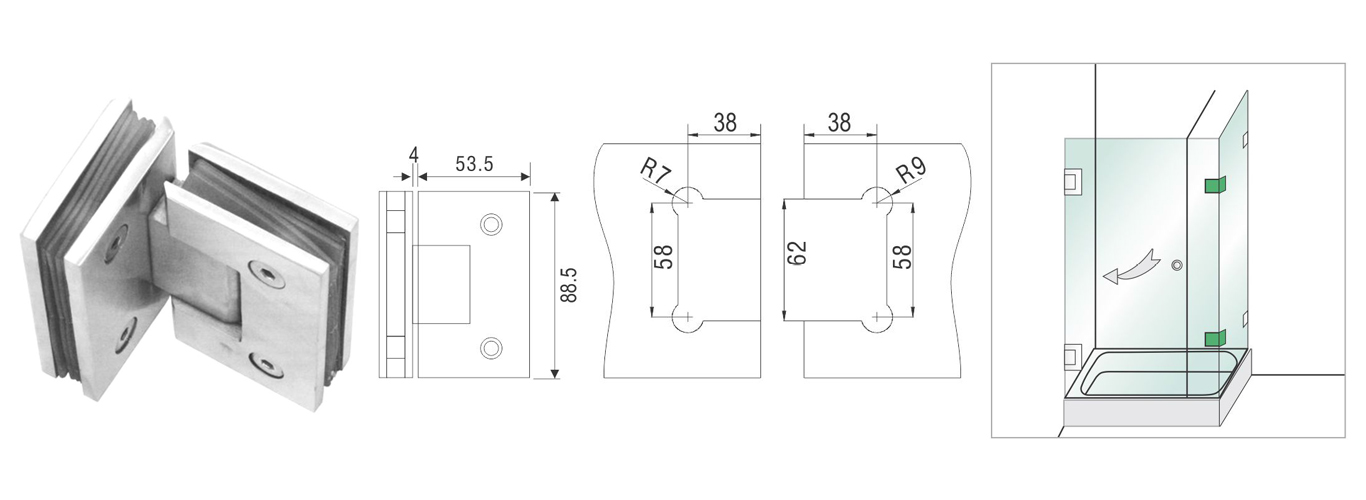

NSH-55

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

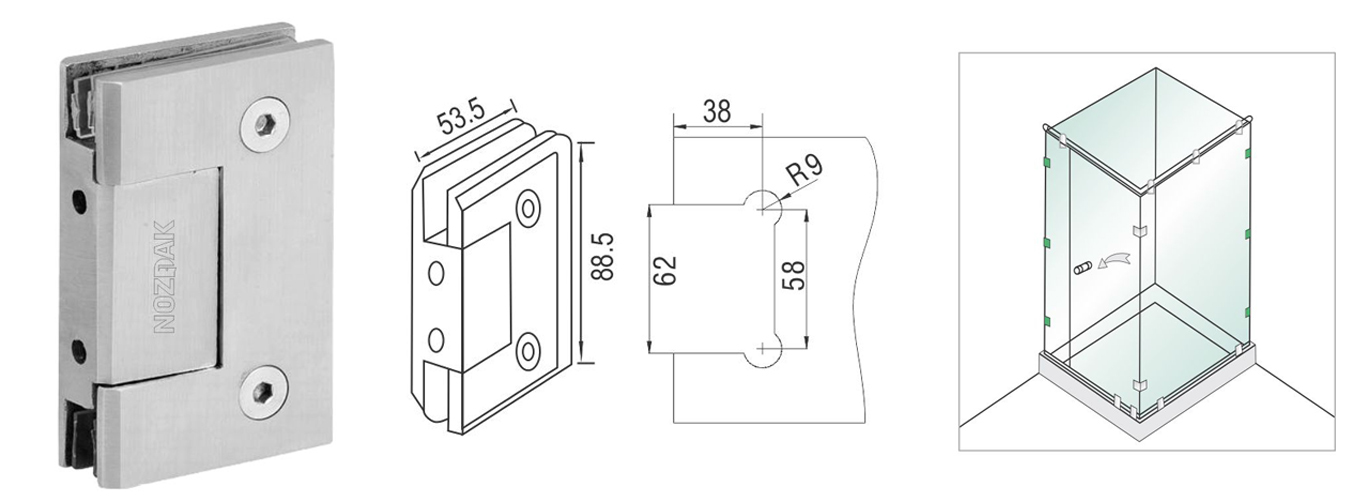

NSH-66

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

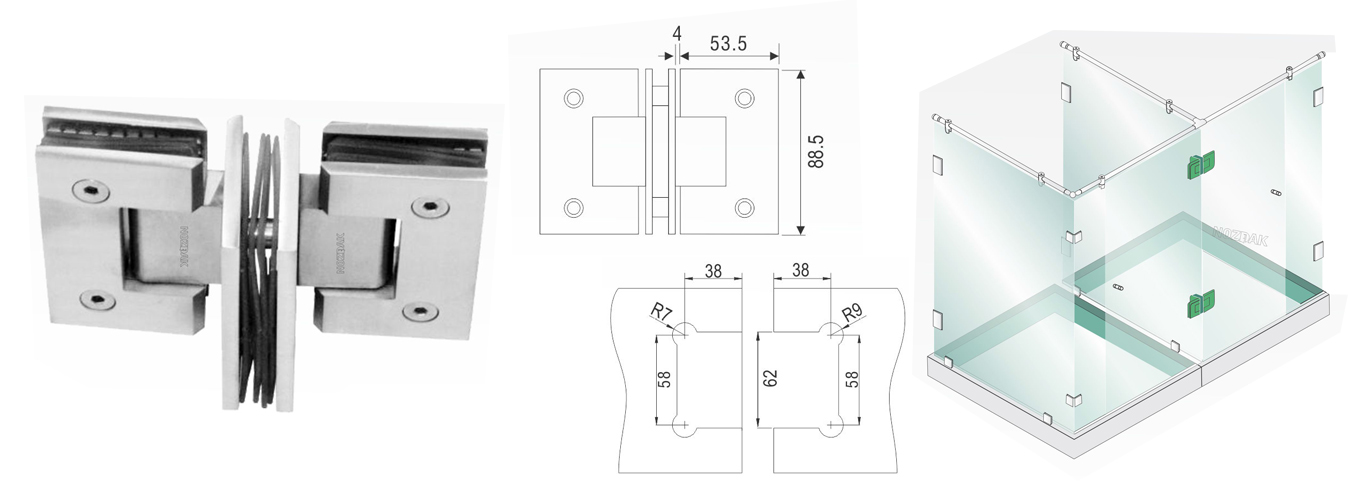

NSH-77

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass
  • Double action spring returns door from 25° in each direction

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 45 Kg

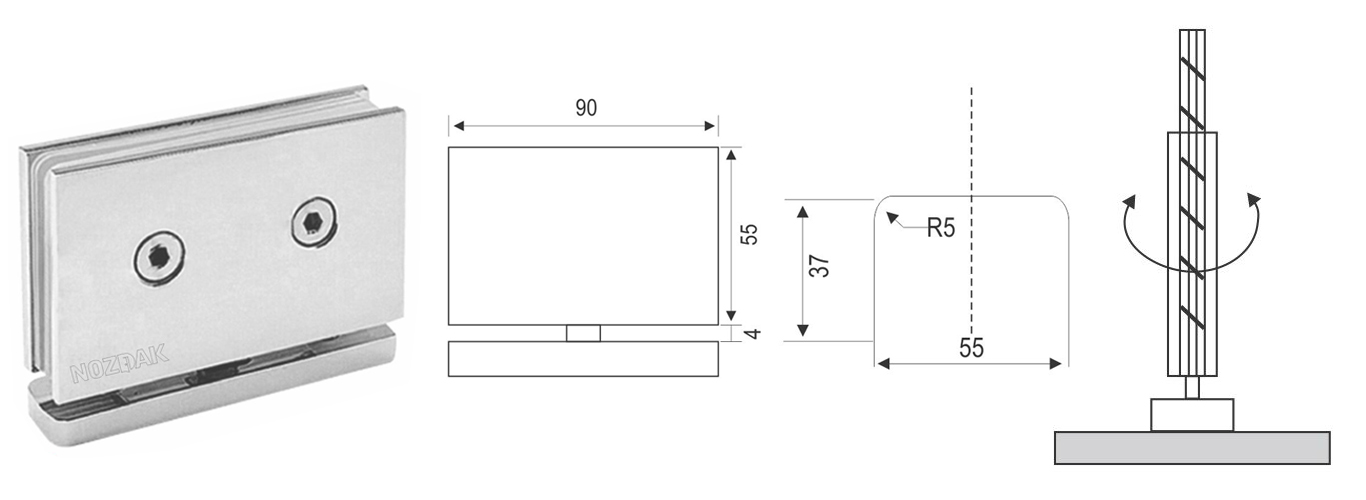

NSH-88

Door Thickness

  • 6mm To 10mm

Door Weight

  • Maximum 45 Kg

Available Finish

  • Bright Chrome

Material

  • Brass

Partition Hinges

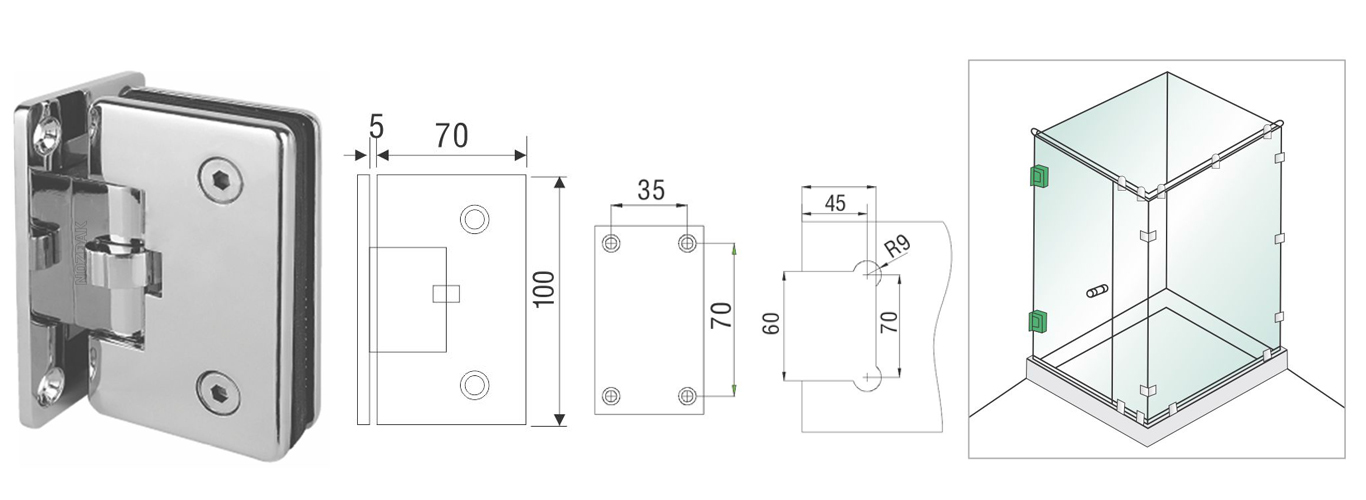

NSH-111

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass e

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 80 Kg Heavy Duty

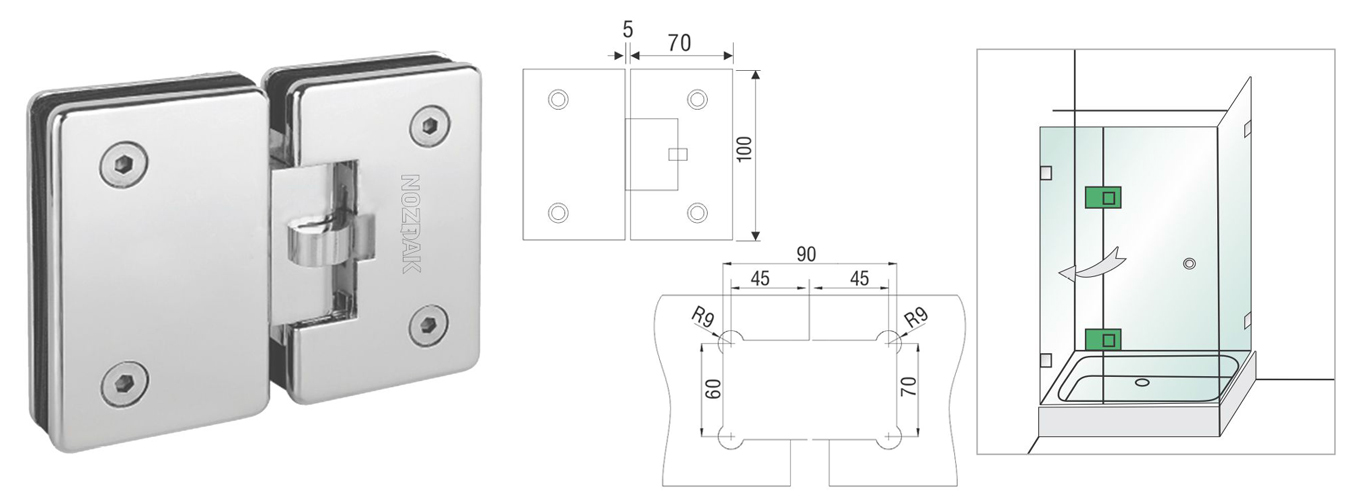

NSH-333

Wall to Glass 180° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 80 Kg Heavy Duty

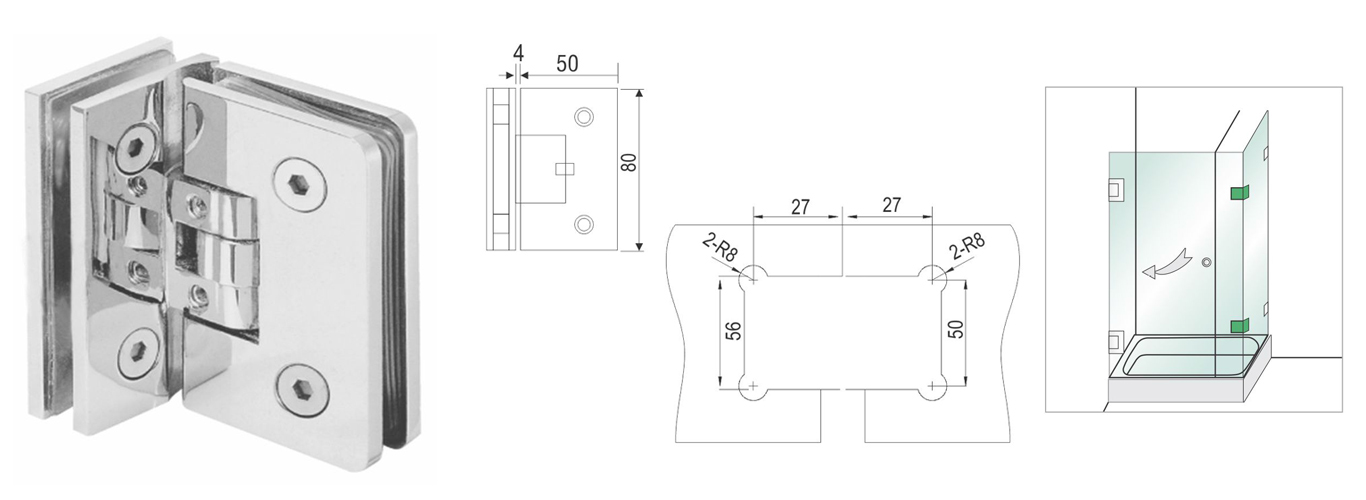

NSH-555

Wall to Glass 90° Off Set Hinge

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Matt
  • Chrome Plated

Material

  • Stainless Steel

Door Thickness

  • 8-12mm

Weight Capacity

  • 80 Kg Heavy Duty

Glass Connectors

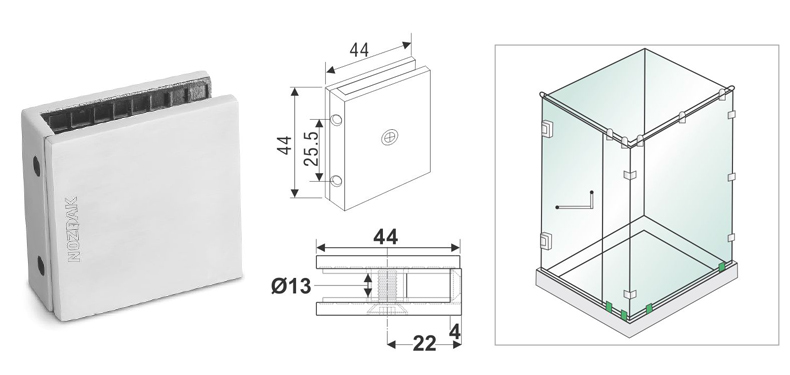

NGC-1

Fixed Floor Mounting-Casting

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

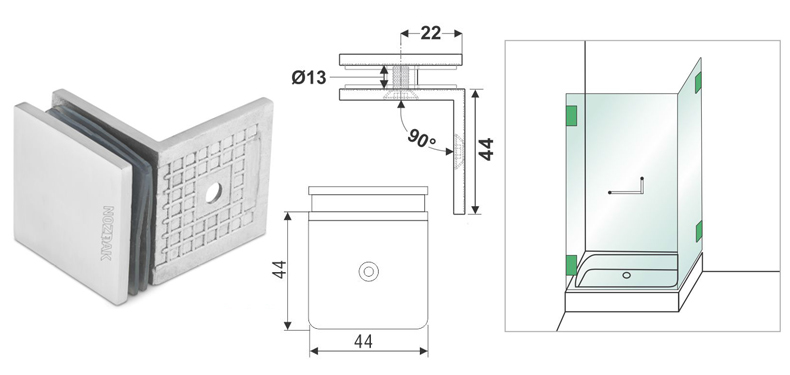

NGC-2

Wall to Glass Connector 90° – Casting

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

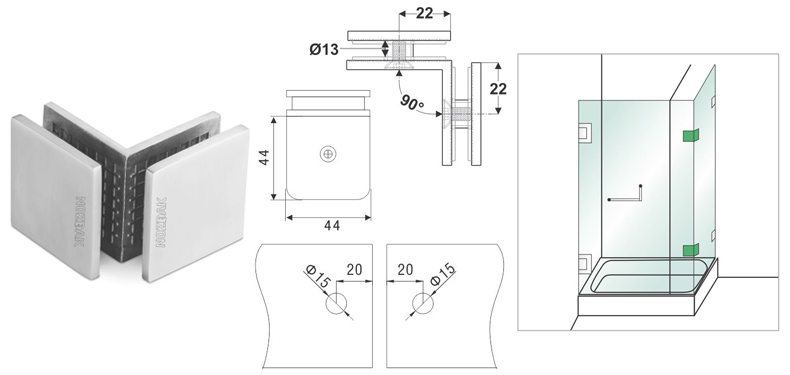

NGC-3

Glass to Glass Connector 90° – Casting

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

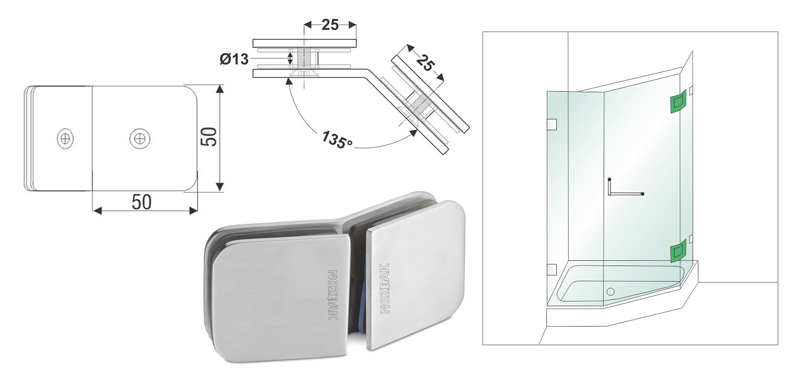

NGC-4

Glass to Glass Connector 135° – Casting

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

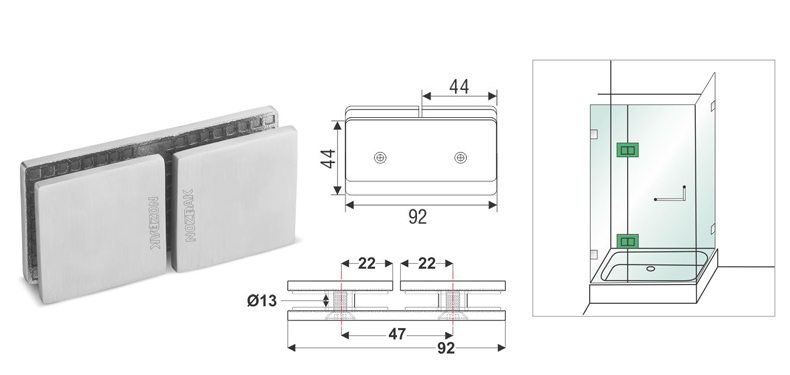

NGC-5

Glass to Glass Connector 180° – Casting

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

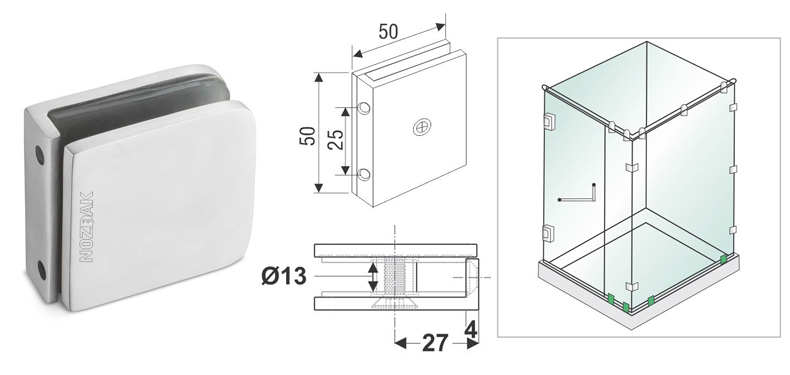

NGC-11

Fixed Floor Mounting- 4mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

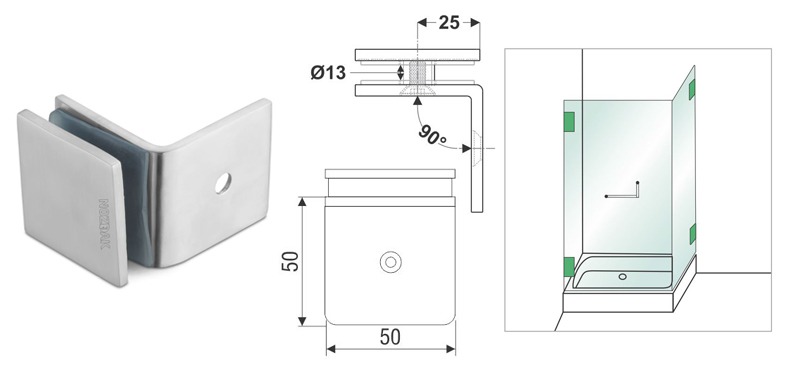

NGC-22

Wall to Glass Connector 90° – 4mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

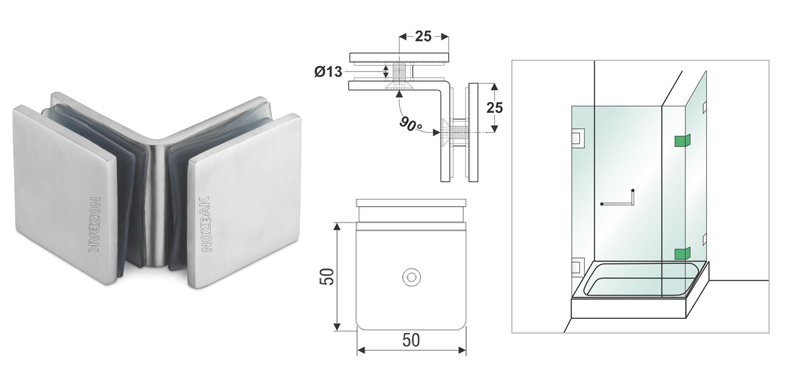

NGC-33

Glass to Glass Connector 90° – 4mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

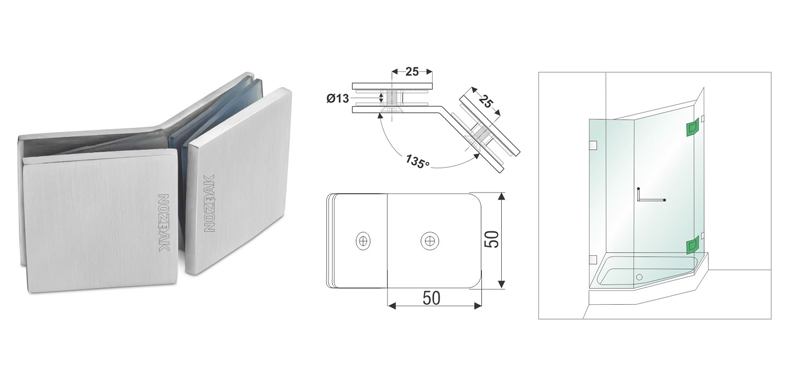

NGC-44

Glass to Glass Connector 135° – 4mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

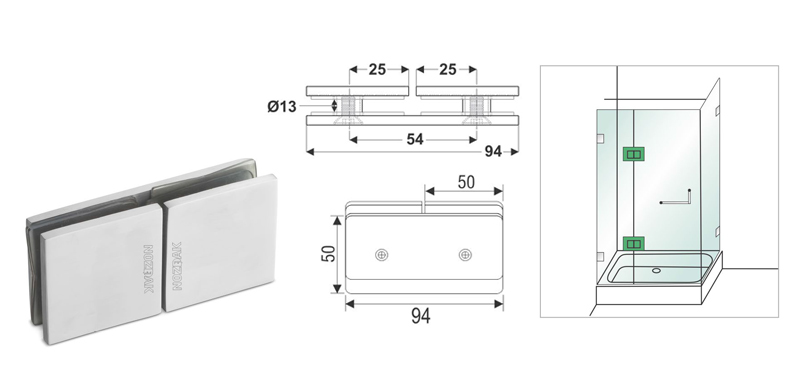

NGC-55

Glass to Glass Connector 180° – 4mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

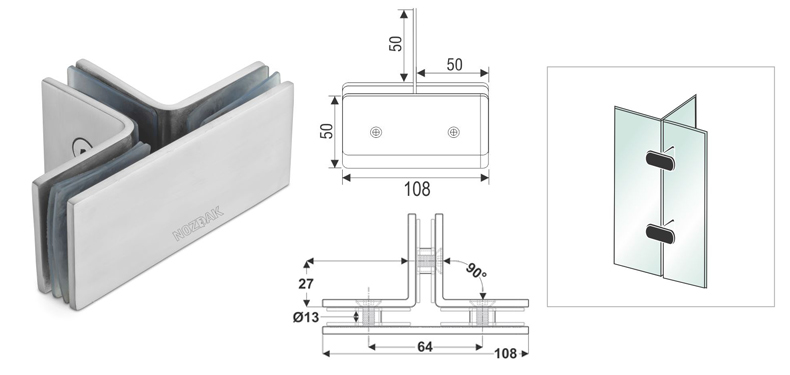

NGC-66

Glass to Glass Connector 90° – 4mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

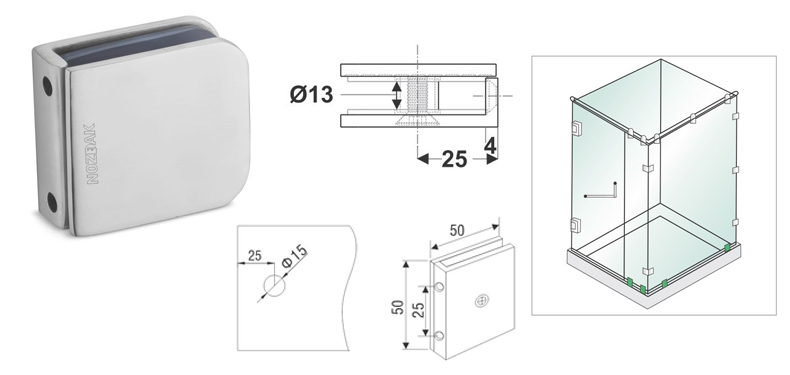

NGC-111

Fixed Floor Mounting – 3mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

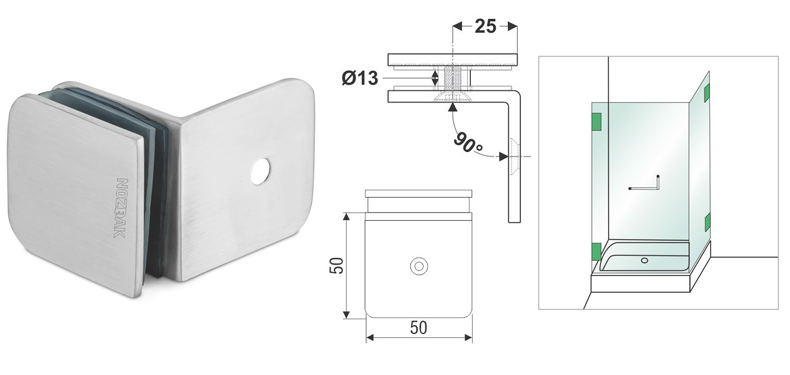

NGC-222

Wall to Glass Connector 90° – 3mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

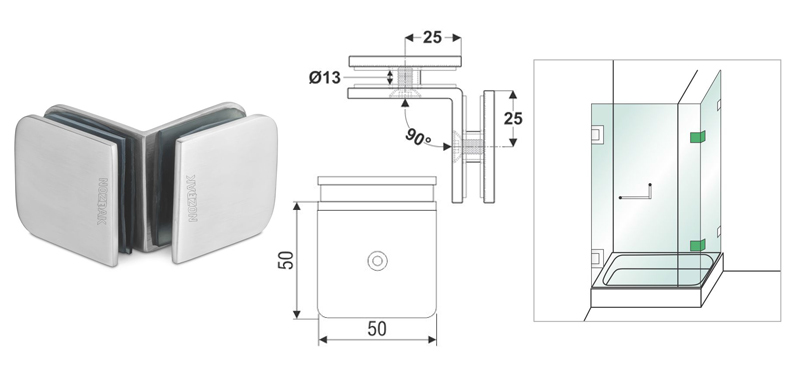

NGC-333

Glass to Glass Connector 90° – 3mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

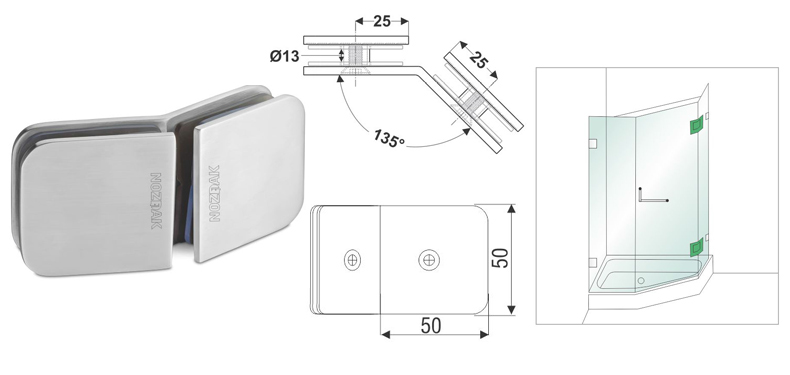

NGC-444

Glass to Glass Connector 135° – 3mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

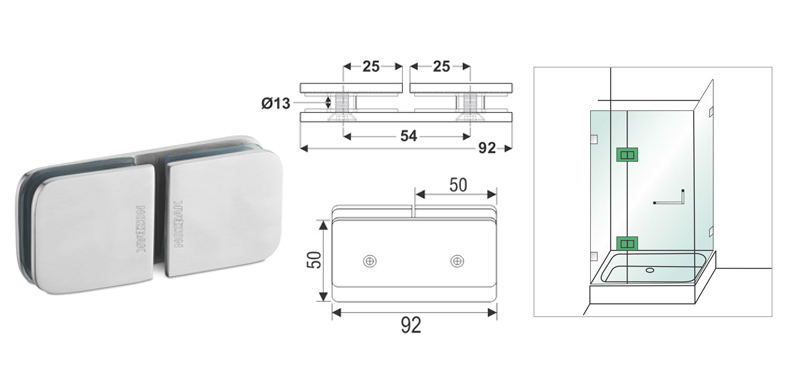

NGC-555

Glass to Glass Connector 180° – 3mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm

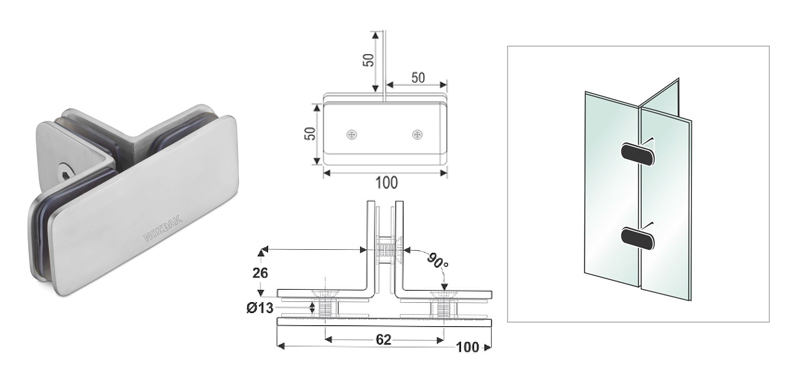

NGC-666

Glass to Glass Connector 90° – 3mm Sheet Metal

  • With gasket to prevent glass from damage Secure holding with Glass

Available Finish

  • Satin
  • Glossy

Material

  • Stainless Steel 304 Grade

Door Thickness

  • 8-12mm
